A team we spoke with had a 40-minute CI pipeline and a QA lead who'd stopped trusting the green checkmark. Most of that time went to end-to-end tests a unit test could have caught in milliseconds. This is an issue with software testing pyramids, not tools, and it is a common problem in software development groups once the codebase reaches a certain threshold.
The testing pyramid model gives software testing a shape: Fast unit tests at the base, slower end-to-end tests at the top. Skip that shape and every release slows down. This guide covers all three layers, ten test automation tools worth knowing, and how the pyramid maps onto a CI/CD pipeline.

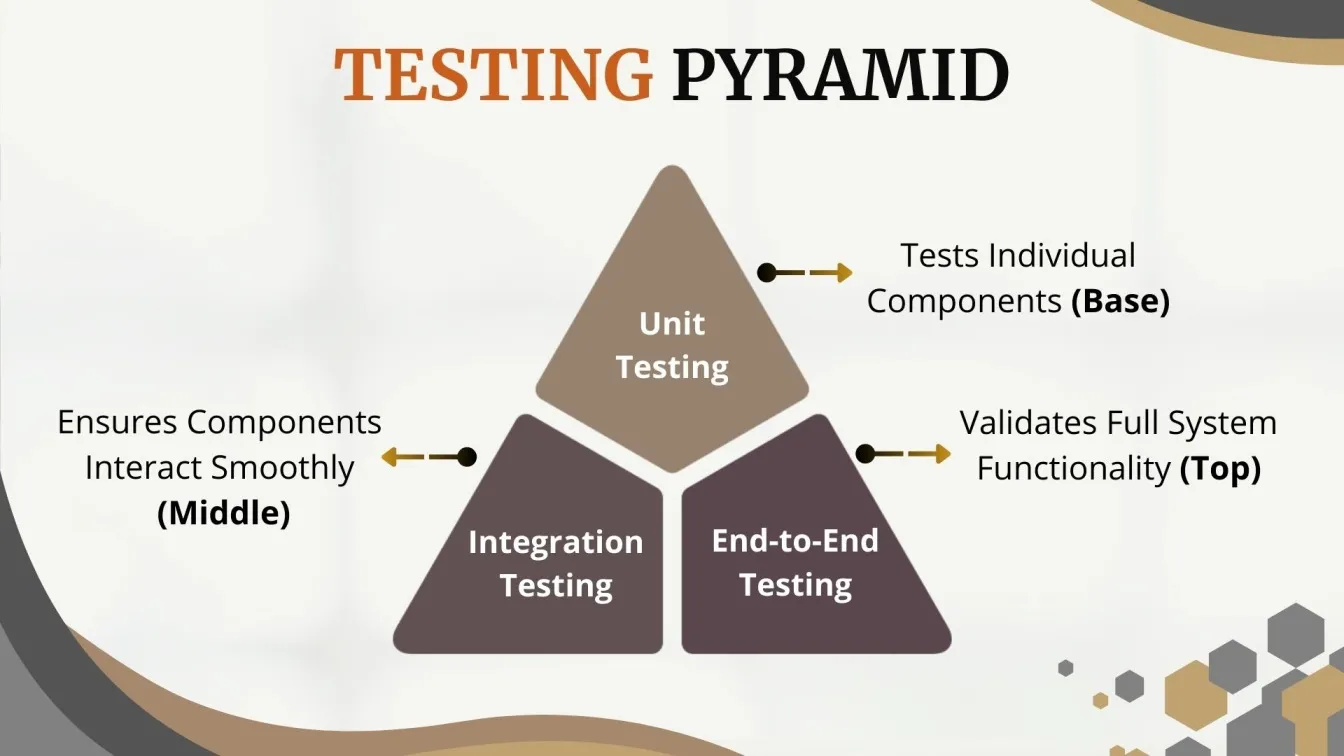

What Is the Testing Pyramid
Testing Pyramid categorizes the automation test process into three layers: Unit testing, integration testing, and end-to-end testing, with more tests in the lower layer. The Testing Pyramid Model was introduced by Mike Cohn in the book Succeeding with Agile in 2009. Some call it the testing triangle instead.
- It's a proportion guideline, not a fixed quota.
- The testing pyramid software today assumes this same default.
- The shape reflects speed and cost, not preference.
- The test pyramid agile teams still rely on hasn't changed much since 2009.

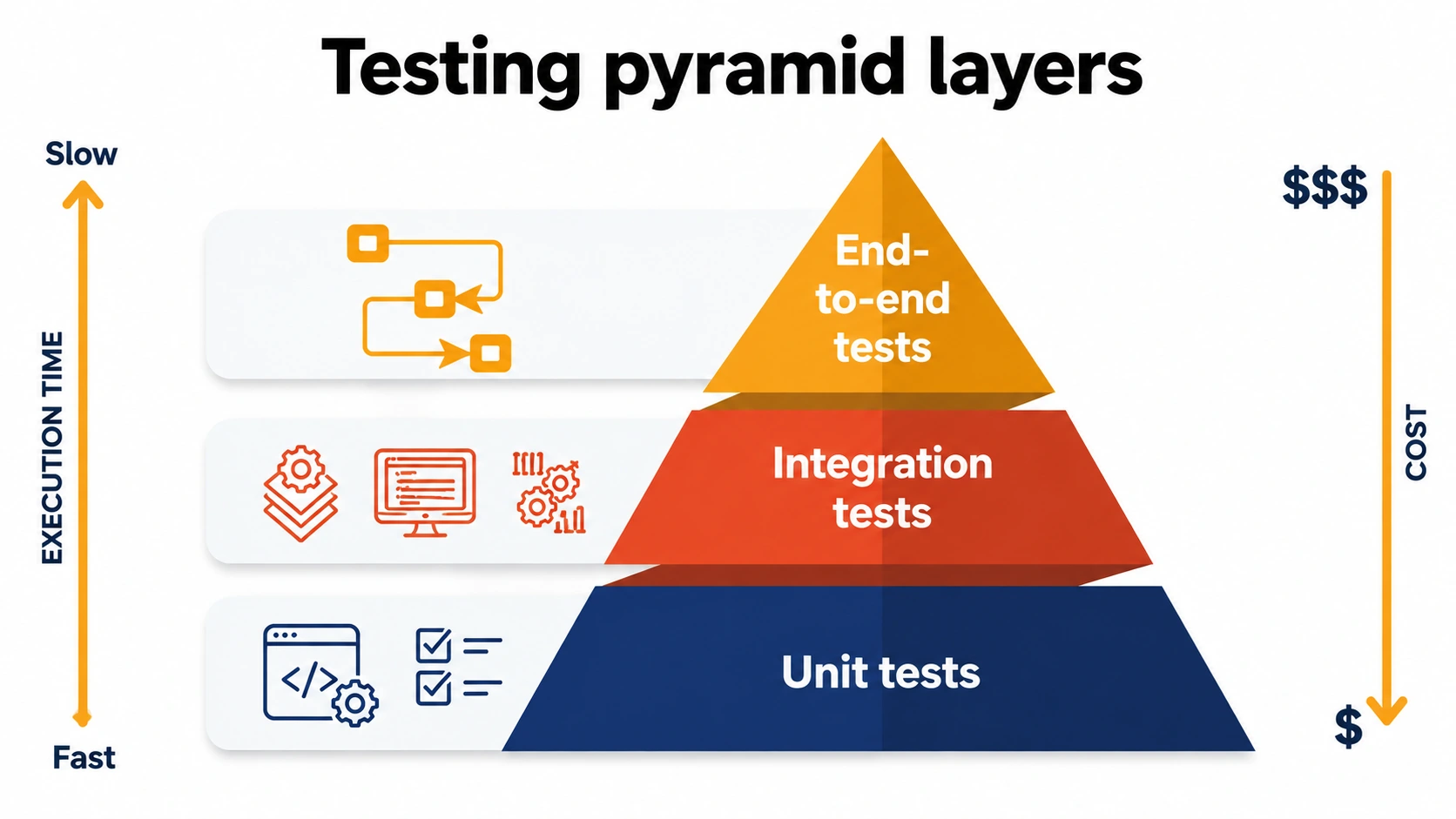

How Many Layers Does It Have
The standard model has three layers. Some teams add static code analysis underneath as an unofficial fourth layer, catching syntax and type errors early.
- Unit, integration, and end-to-end remain the three officially recognised layers.
- Static code analysis often sits below as an unofficial fourth.
- Layers blur without clear naming conventions.

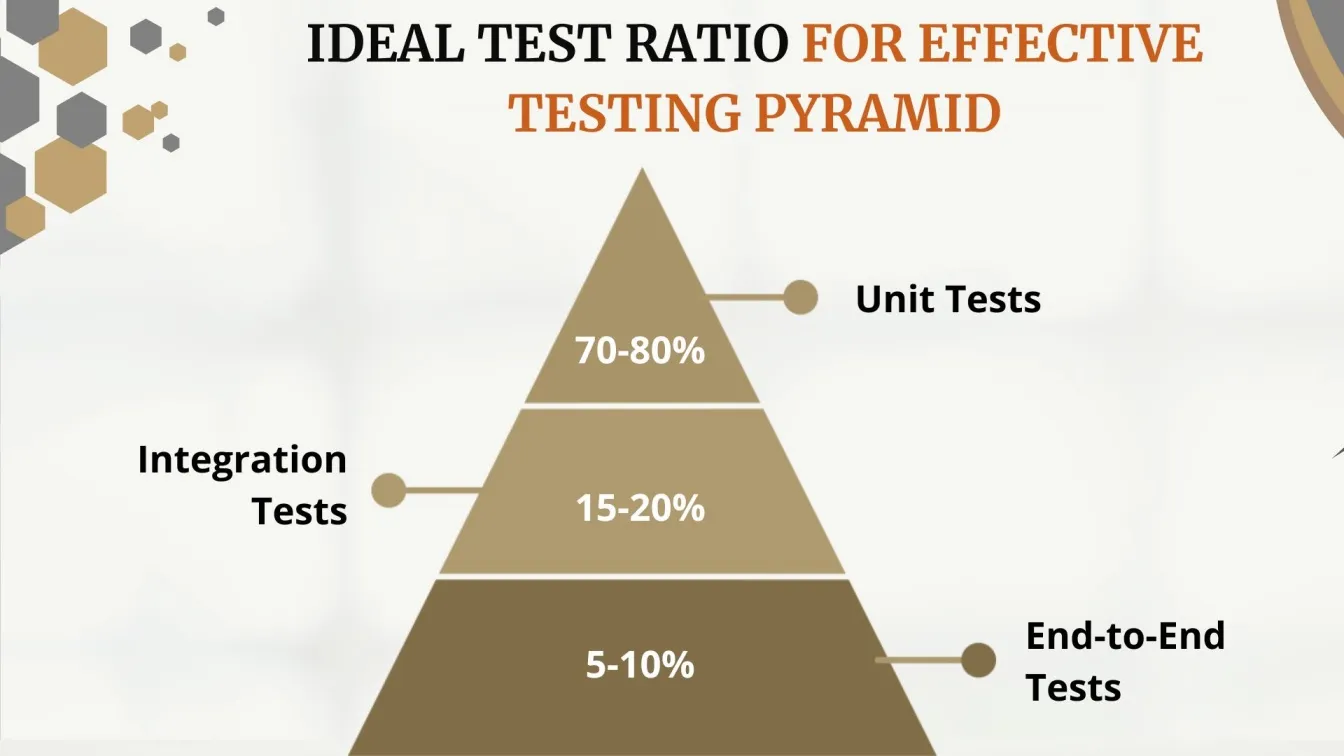

The 70/20/10 Split: Why the Shape Matters
Approximately 70% unit testing, 20 to 25% integration, and 5 to 10% end-to-end. Unit tests execute within milliseconds, whereas end-to-end tests take a few seconds or even minutes. A higher number of test cases for faster execution.
- Treat it as a starting point, not dogma.
- A content site and a payments API will land on different ratios.
- Test coverage should stay deep at the base.

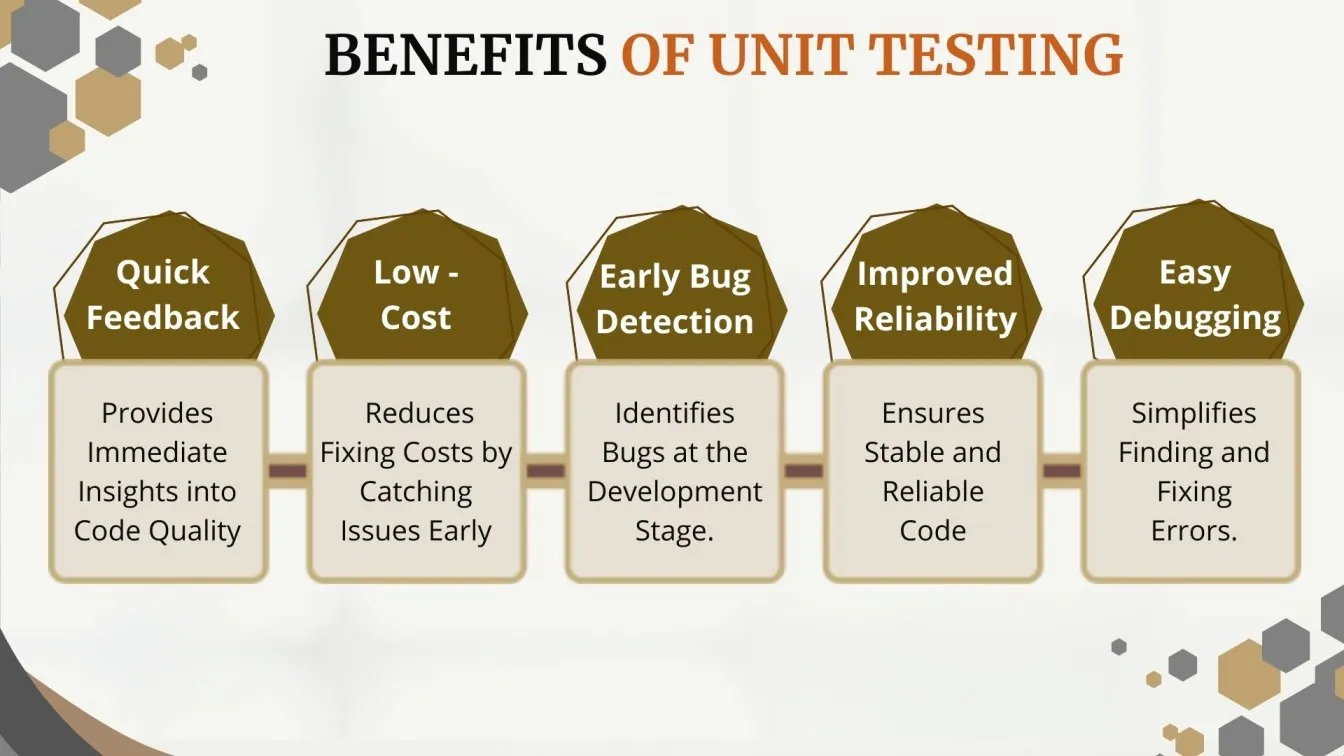

Unit Testing
Unit testing tests a single function, method, or class individually without any database and without any network calls. Such tests are written by the developers through Test-Driven Development and are run simultaneously while coding and not separately as a handoff for QA testing. Unit testing is done repeatedly on each and every save/commit since unit testing takes only milliseconds to complete and catches any logic errors in the code before it reaches the branch.

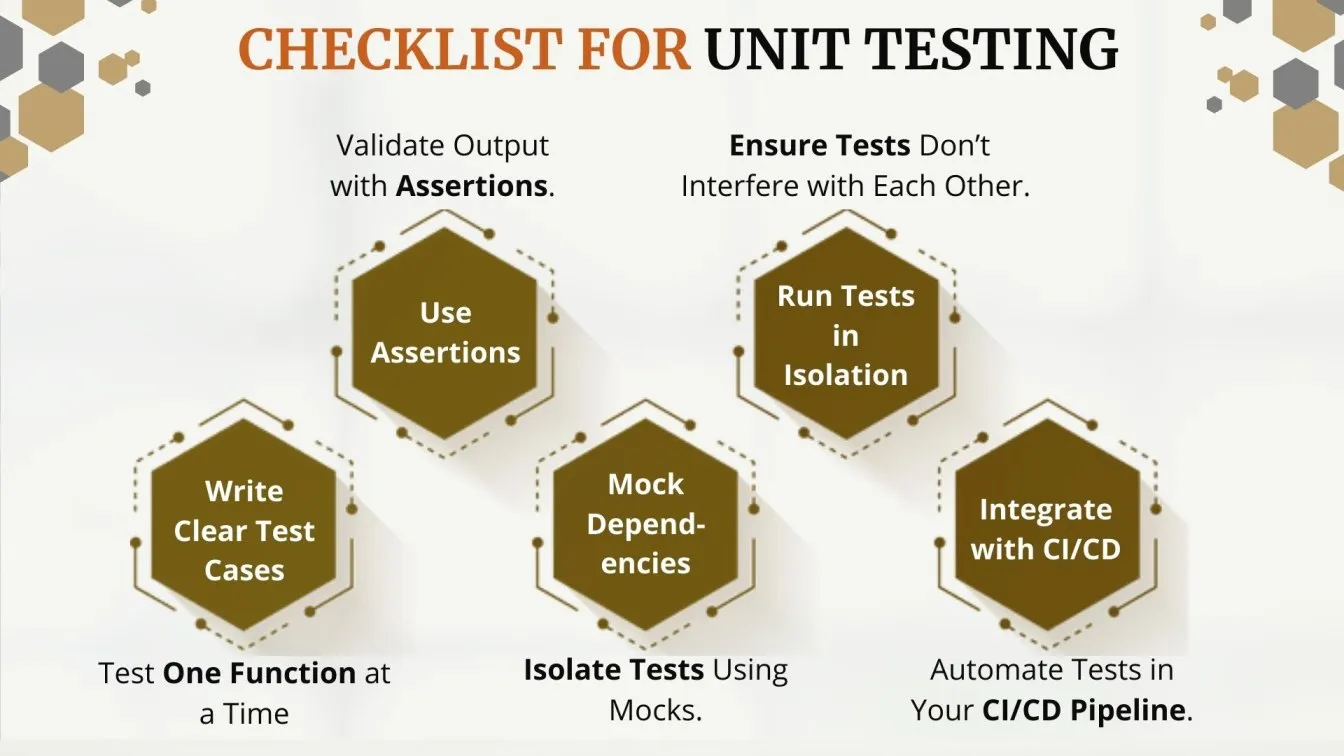

What to Test at the Unit Level
- Test the public interface, not internal plumbing.
- Cover user authentication logic, like a login rejecting a bad password.
- Test component-based UIs at the unit level first.
- Avoid testing implementation details; it breaks test cases on every refactor.
- Watch for edge cases in input validation and boundary conditions.

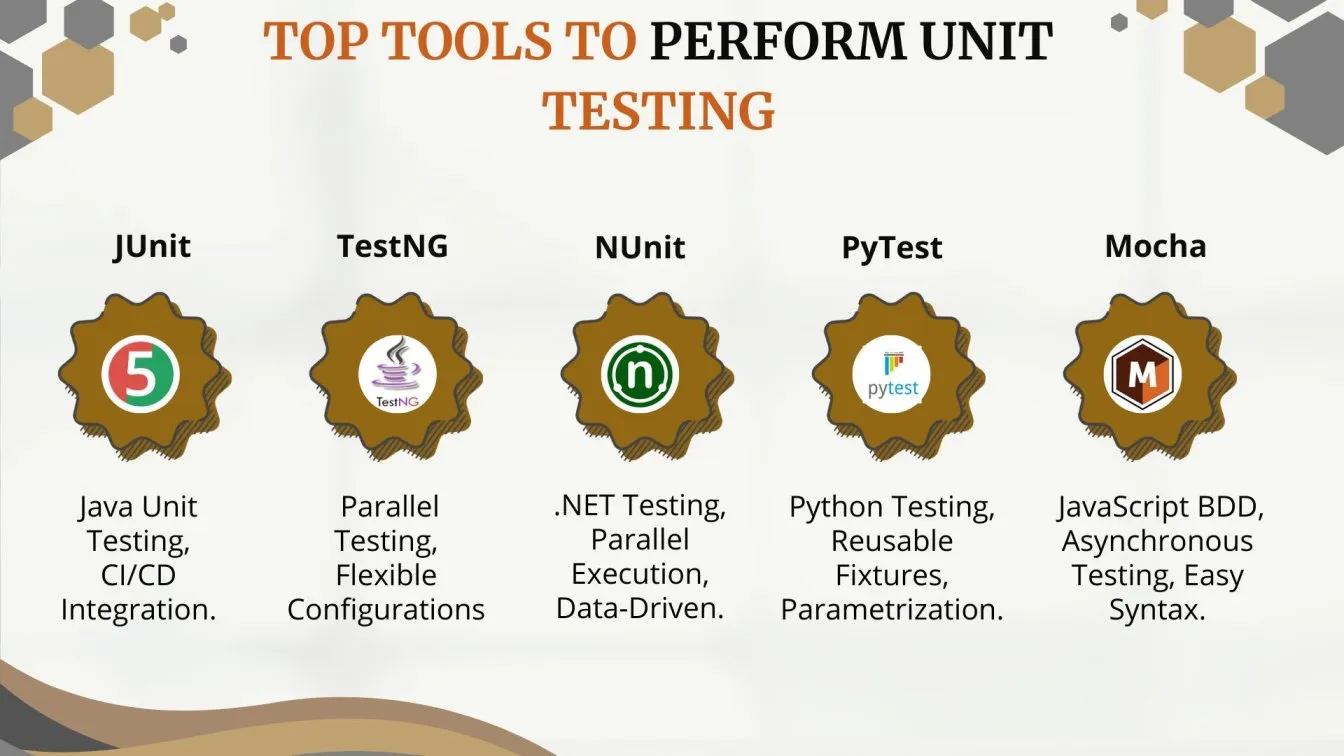

Unit Testing Tools
- JUnit: The default framework for Java and Spring Boot projects, fast and CI-friendly with minimal setup.
- Jest: The standard in JavaScript and Node testing, particularly when building UI components; provides mocking tools, snapshot testing, and AI-driven test generation capabilities.
- pytest: The best library for Python unit testing, known for its low-boilerplate nature and vibrant plugin community.

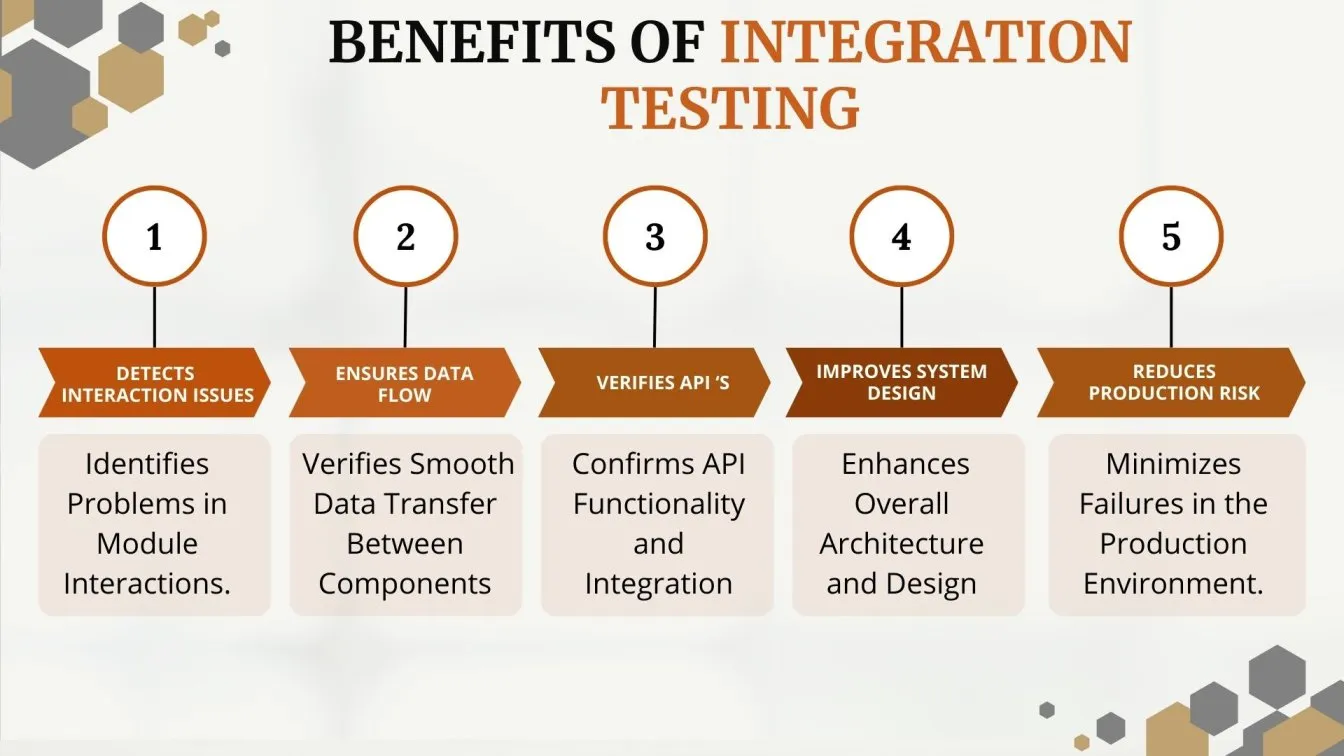

Integration Testing
Integration tests determine the interaction between two or more actual components, a service and its database, or API calls exchanged between two microservices. It is executed after passing unit tests, typically before merging with the master branch, since individual units are functional. Unit testing vs integration testing comes down to the difference between isolation and real-world situations: Unit tests a component alone, while integration tests cooperation of components in the real-world environment.

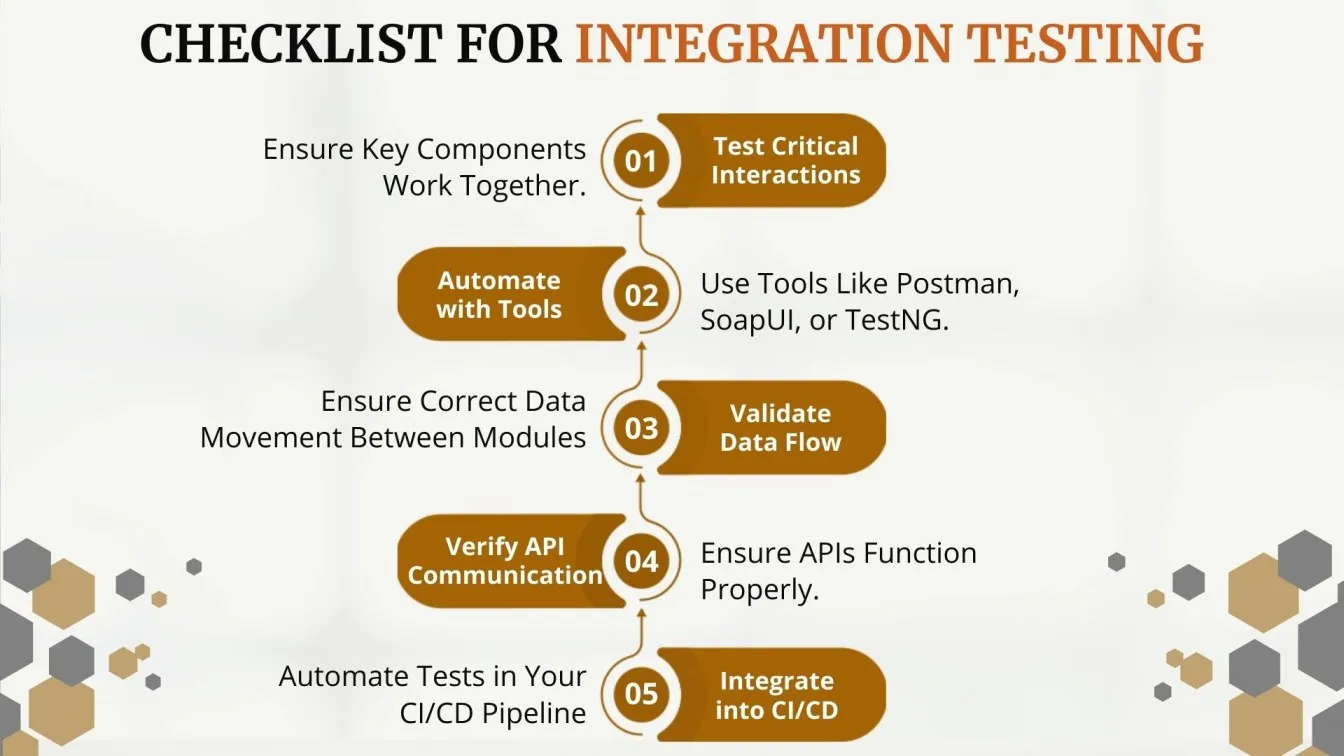

What to Test at the Integration Level
- REST API request and response validation via focused API tests.
- Database read and write correctness.
- Service Tests confirming a transaction service triggers a receipt and updates a balance.
- Contract Testing, also called Contract Tests or CDC tests, confirms two services agree on a data shape.
- Never mix unit and integration concerns in one test.

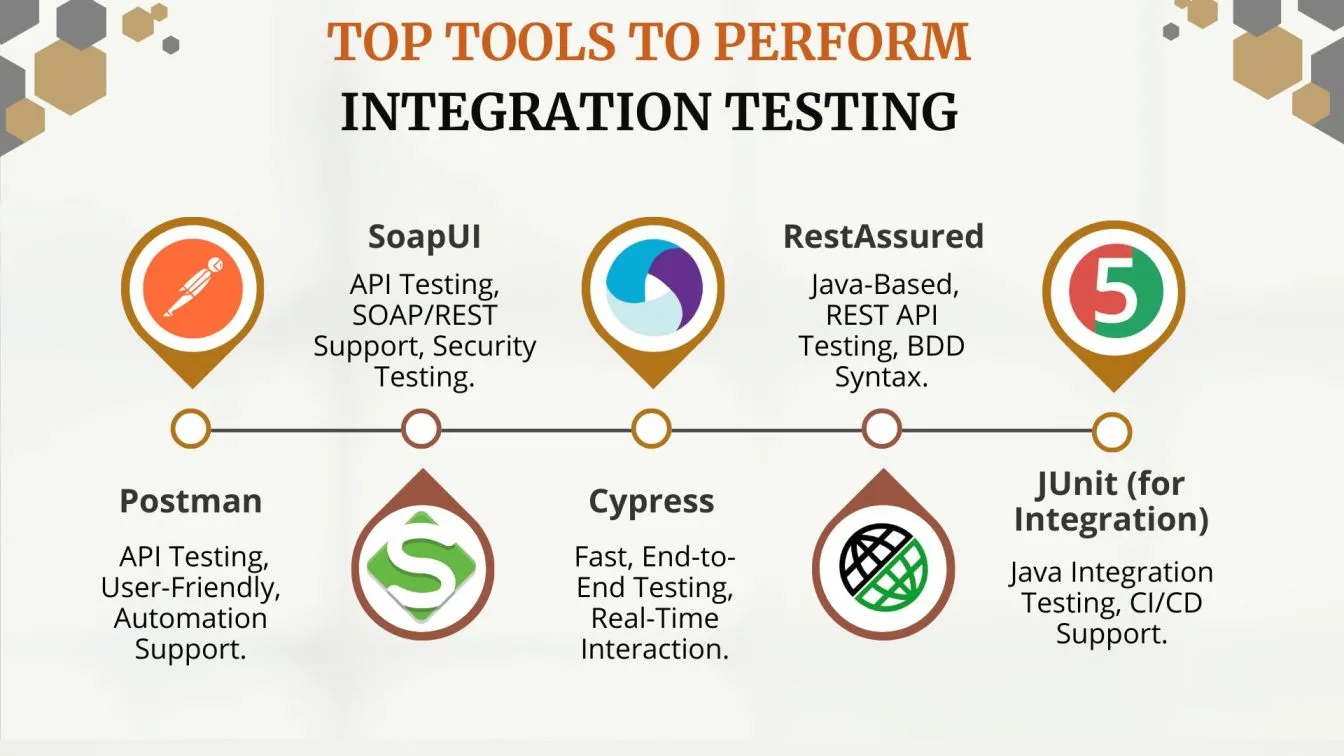

Integration Testing Tools
- Postman: The most common starting point for manual and automated API tests, building a request collection into a CI-runnable suite.
- REST Assured: A Java library for testing REST APIs with fluent, readable syntax, fitting naturally into a Spring Boot suite.
- Pact: The leading contract testing tool for microservice and serverless architecture setups, letting a consumer define a contract and verifying the provider honours it without full deployment.
- GitHub Actions: The orchestration layer tying unit, integration, and E2E tests into working CI/CD pipelines automatically, increasingly paired with self-healing automation plugins.
End-to-End Testing
End-to-End (E2E) Tests, or end-to-end testing, run through the actual user interface: Click, type, submit, wait, simulating exactly what a real user does from start to finish. Teams perform E2E testing last in the pipeline, right before deployment, since it's the slowest and most resource-intensive layer of the three. Because of that cost, coverage stays deliberately narrow, limited to journeys a business genuinely cannot ship without, rather than every possible path.

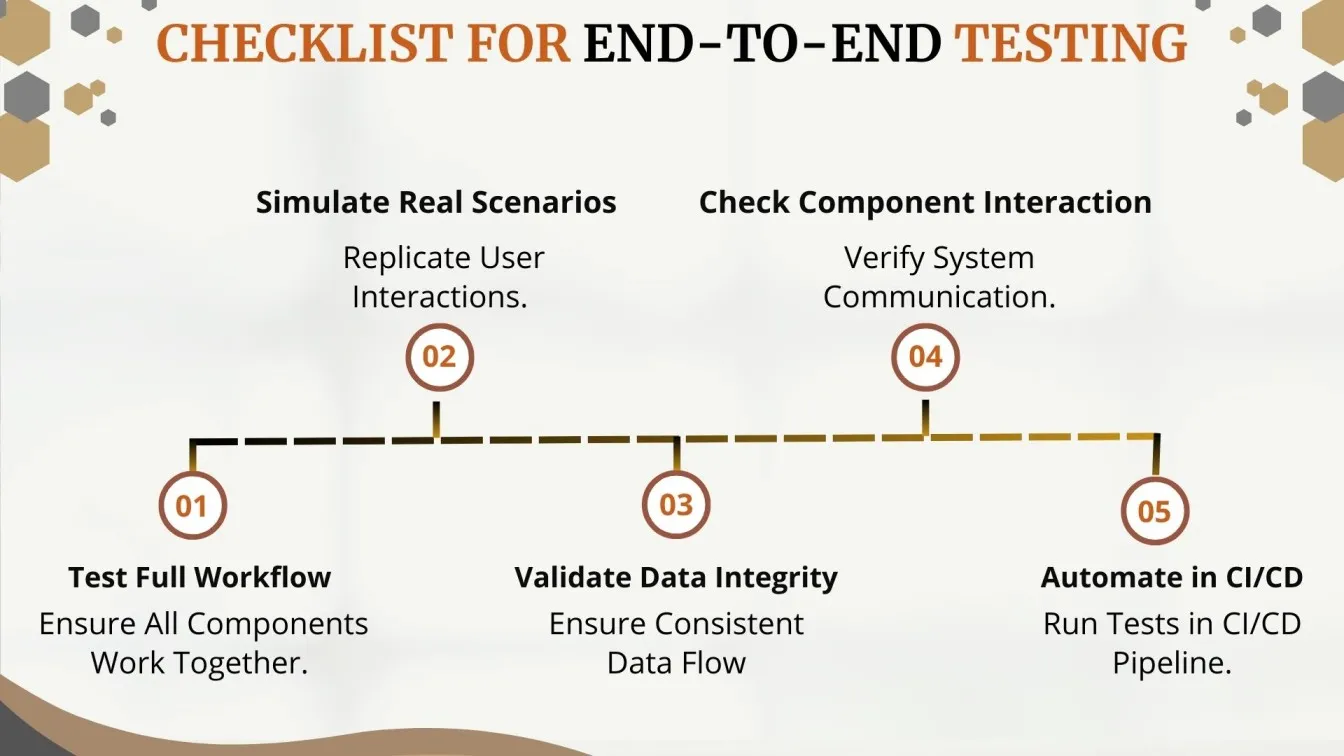

What to Test at the E2E Level
- Critical journeys only: Checkout, account creation, one or two core actions.
- One example: Log in, add to cart, complete payment, as one flow.
- Watch for edge cases a script won't catch alone.

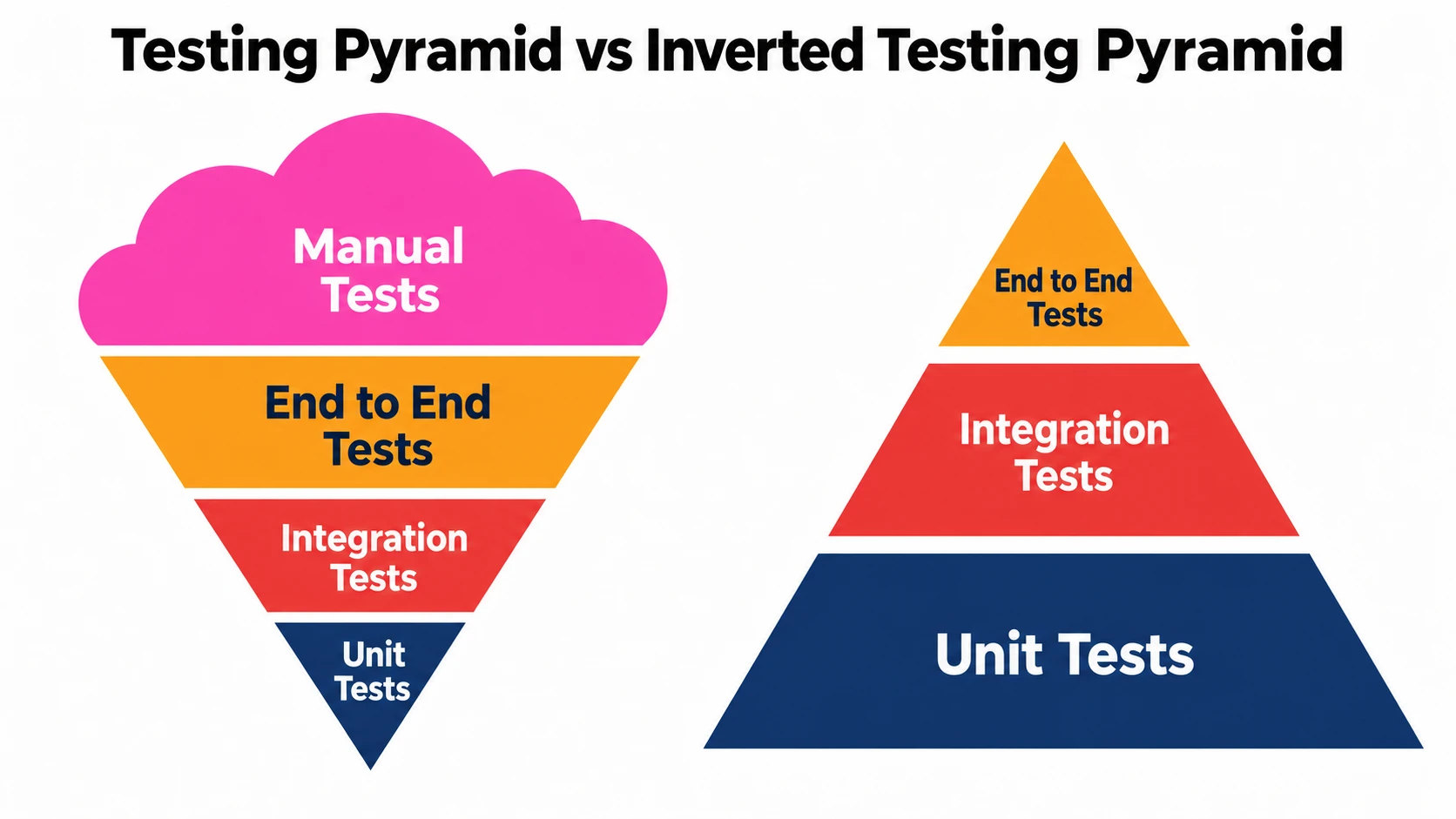

- Avoid stacking too many User Interface Tests, which creates the "ice cream cone" anti-pattern.

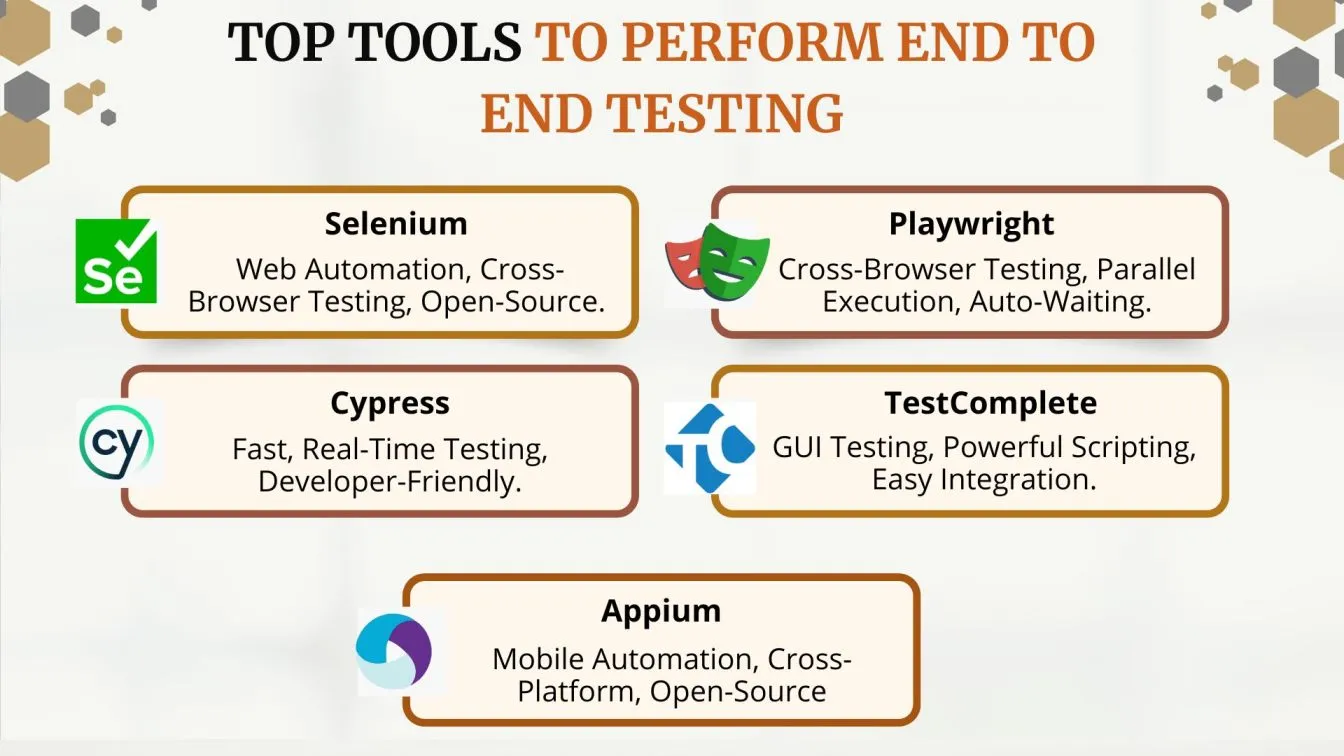

E2E Testing Tools
- Selenium WebDriver: The long-standing browser automation standard, still common in older enterprise E2E suites despite slower, flakier test runs and timing quirks that add up.
- Playwright: A newer tool gaining ground fast, running in a headless browser by default with built-in auto-waiting for fewer flaky test failures overall.
Manual vs Automated Testing: Where Each One Fits in the Pyramid
The pyramid describes automated distribution only. Manual testing, and the manual involvement it requires, sit alongside it, not inside it. Exploratory testing catches edge cases automation testing misses, manual regression passes still matter before a release, and acceptance test sign-off stays a human call. Security testing, often run by a penetration testing company, and performance testing sit outside entirely.

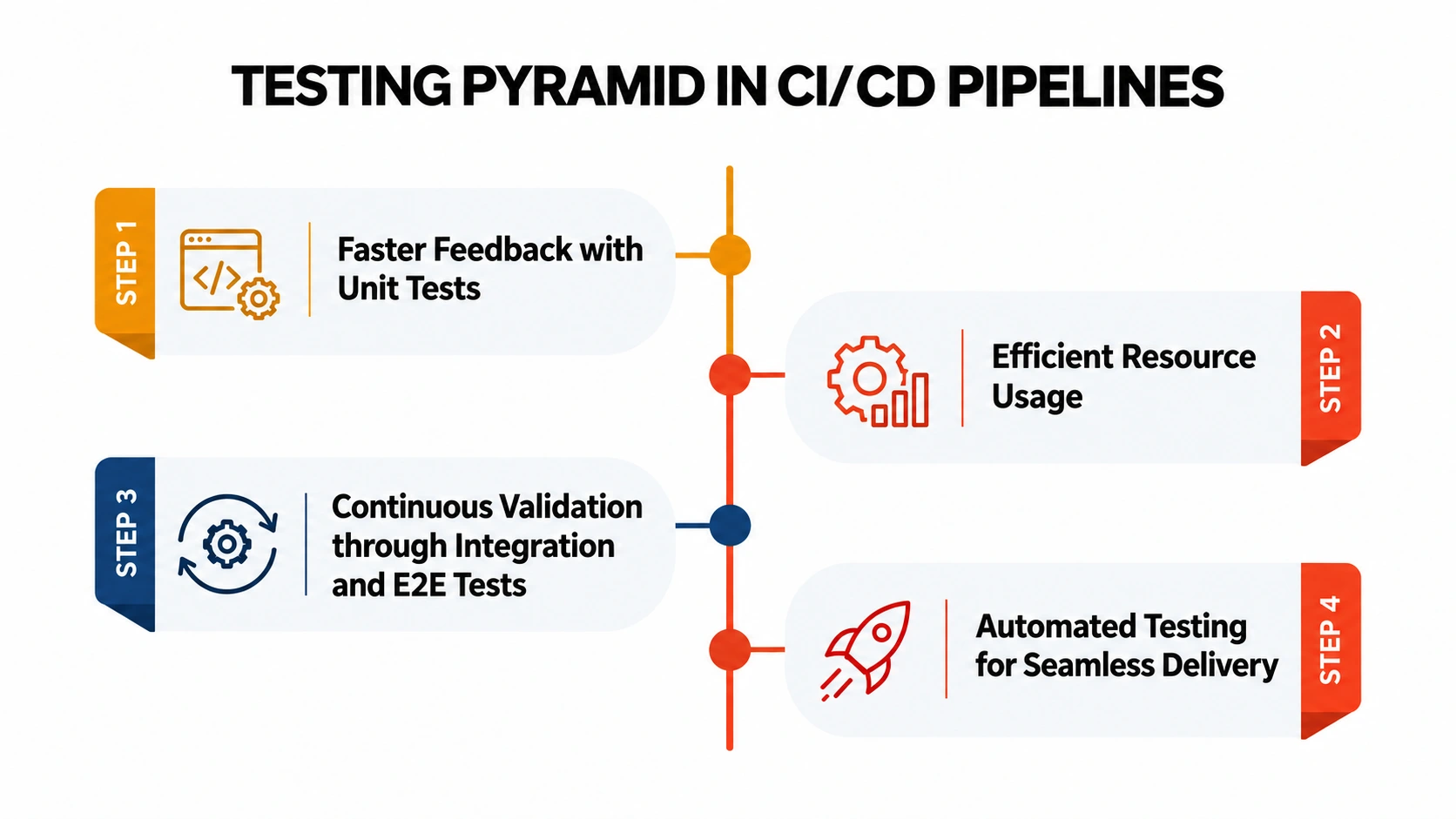

Mapping the Testing Pyramid to Your CI/CD Pipeline
A CI/CD pipeline runs through the same stages a release goes through, and each testing pyramid layer earns a specific spot in that sequence based on how fast and how disruptive it is to run. Getting this order right is what keeps continuous integration testing useful instead of becoming another bottleneck.
- Unit tests: Run on every commit, since they're fast enough, in milliseconds, not to slow anyone down. This is where the bulk of the suite lives, and where failures get caught closest to the code that broke them.
- Integration tests: Run before a merge to the main branch, alongside focused API tests, catching issues between services once the fastest checks have already cleared. This stage matters most for a codebase with several connected services to coordinate.
- End-to-end tests: Run last, right before deployment to staging, acting as a final gate rather than a first line of defence, since they're the slowest and most expensive layer to run on every single change.

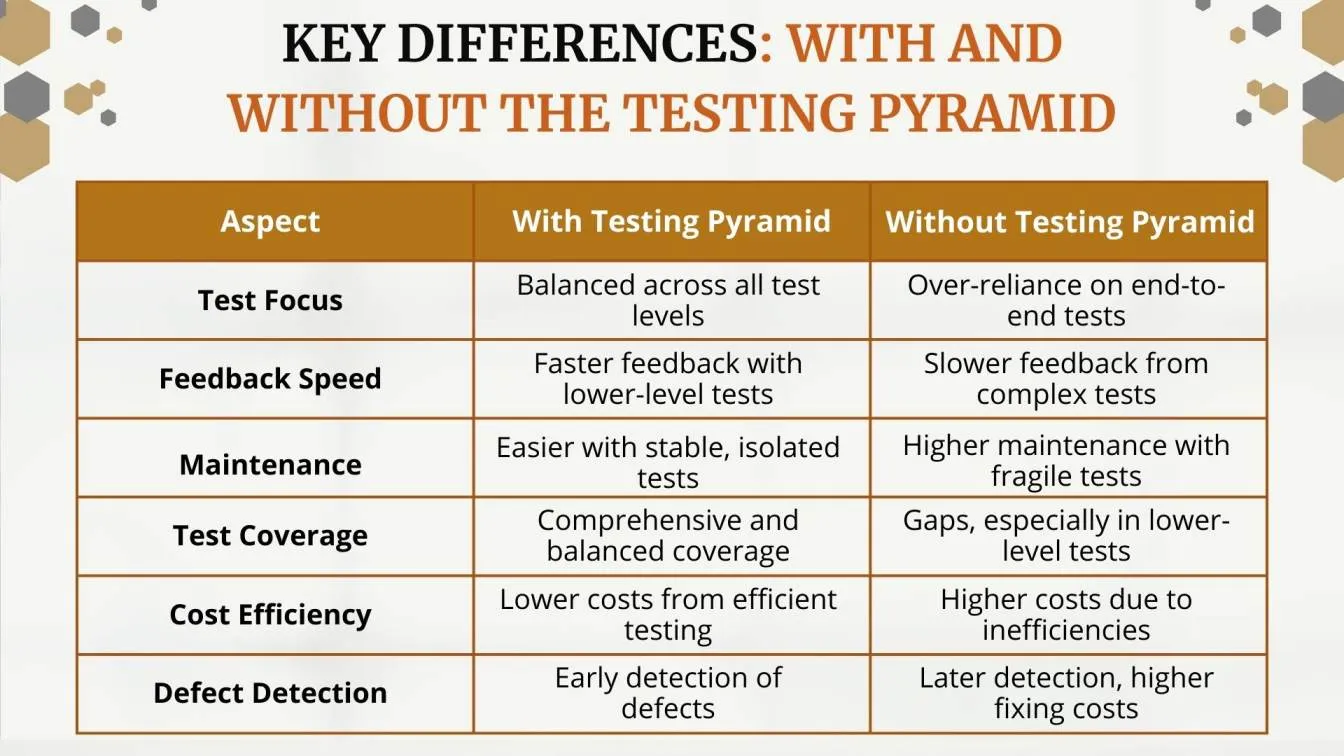

Test Pyramid Benefits and Common Challenges

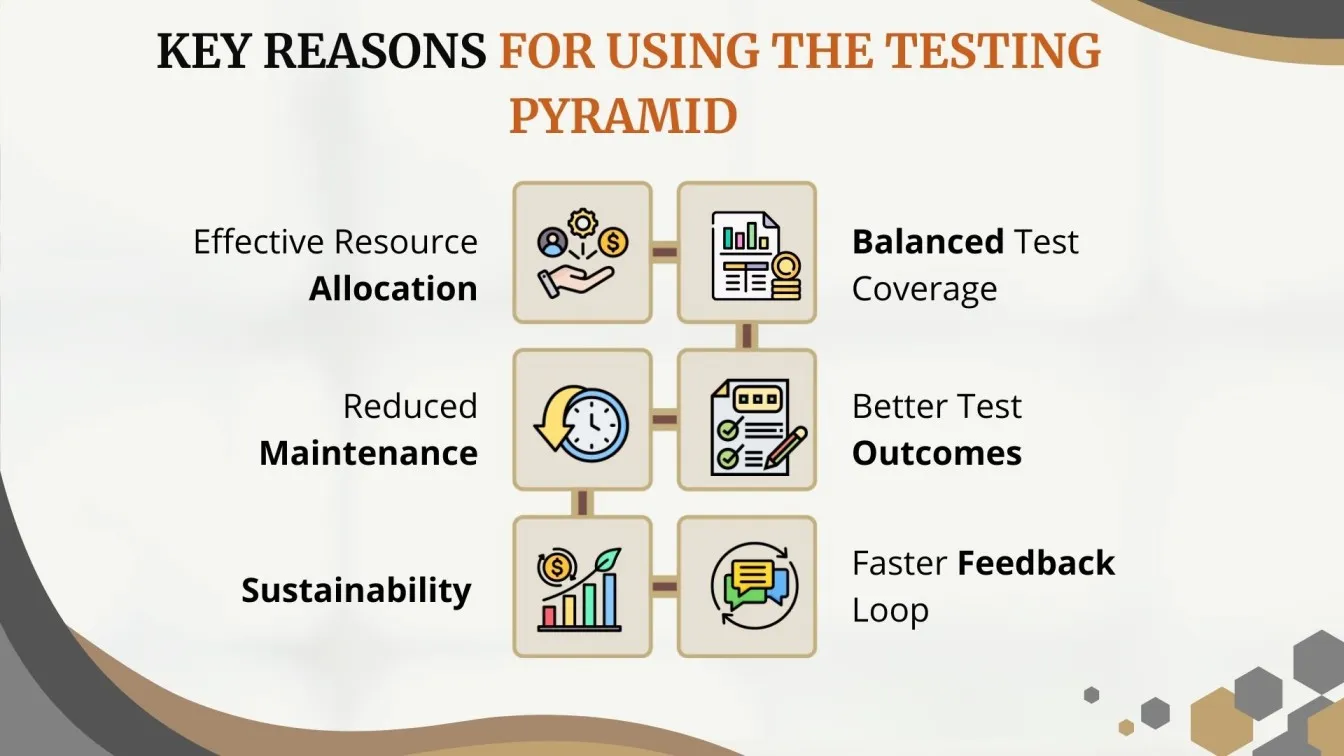

Benefits
A well-shaped pyramid pays off in ways teams notice almost immediately, especially once the ratio settles into place across a few release cycles and the whole team trusts the pipeline again.
- Faster feedback loops, since most failures surface within milliseconds at the unit level rather than hours later.
- Cheaper bug-fixing overall, because catching an issue early costs far less than catching it in production.
- Test metrics that map cleanly to a specific layer instead of one vague, blended coverage number.
- More predictable release cycles, with nobody waiting on a slow, unreliable E2E suite to greenlight a deploy.
Common Challenges
The trade-offs are just as real, and worth naming honestly rather than treating the pyramid as a solved problem once the ratio is finally set in place.
- Naming conventions can blur which layer a given test actually belongs to, especially as a suite grows.
- Flaky integration or E2E tests caused by third-party dependencies still creep in regardless of discipline.
- Squashing a genuinely complex system into three tidy boxes doesn't always fit as cleanly as the model suggests.
- Some suites eventually need a fourth category entirely, for contract testing or CDC tests that don't map to any single layer.
How Frugal Testing Helps You Build a Balanced Test Pyramid
Across our software QA services and test automation services, the most common cause of a slow pipeline is an inverted pyramid, too much weight at the E2E layer and not enough at the base. Building a solid qa testing pyramid is central to what we do as a qa services company.
Our test creation and test management work starts with an audit of the existing suite, reviewing test coverage reports layer by layer before recommending changes. That tradeoff, in-house rebuild versus outside eyes, has no universal answer; it depends on how much runway your Agile teams have to rebalance instead of shipping.
What Our Engagement Looks Like
- Week 1: Audit the current test distribution and test metrics against the 70/20/10 model across every layer.
- Week 2: Review existing test coverage reports and identify which layer most urgently needs building out.
- Week 3: Build out that layer, adding the missing tests and wiring them into the CI/CD pipeline.
- Week 4: Hand off a fully documented test strategy and a maintainable suite, not an ongoing dependency on us.
Conclusion
The structure of a test suite can tell you a lot more about its state than one single number. A team with high test coverage but an inverted pyramid is slow to ship and struggles with unreliable CI runs since the issue is not the number but its location.
Getting the ratio right takes less new code than most teams expect. It usually means moving tests you already have to a cheaper layer, then letting a properly ordered CI/CD pipeline do the rest.
People Also Ask (FAQs)
Q1. What is software quality assurance?
Ans: Software quality assurance is the set of processes a team uses to prevent defects before release, rather than just catching them afterwards. It covers testing, reviews, and process standards together.
Q2. How long does it usually take to solve the problem of an inverted testing pyramid?
Ans: In most cases, teams achieve noticeable results in four to six weeks, but for a fully rebalanced testing pyramid with good test coverage at all levels, it takes about two to three months.
Q3. Does the pyramid apply to monolith applications, or does it only apply to microservices?
Ans: It applies to both cases. Monolith applications generally require less integration testing because of memory sharing by components, while microservices require more integration and contract testing.
Q4. What is a sensible first step for a team that currently doesn't have any automation tests at all?
Ans: Focus on creating unit tests for the most critical and commonly changing code paths, rather than trying to cover everything.
Q5. What if a team chooses not to follow the pyramid and tries to automate E2E tests only?
Ans: Then such a testing suite will be too slow and expensive to maintain, as every test requires a browser and network stack. Also, there could be several problems hidden behind one broken flow.
